SMC
High quality products based on
high quality material and service.

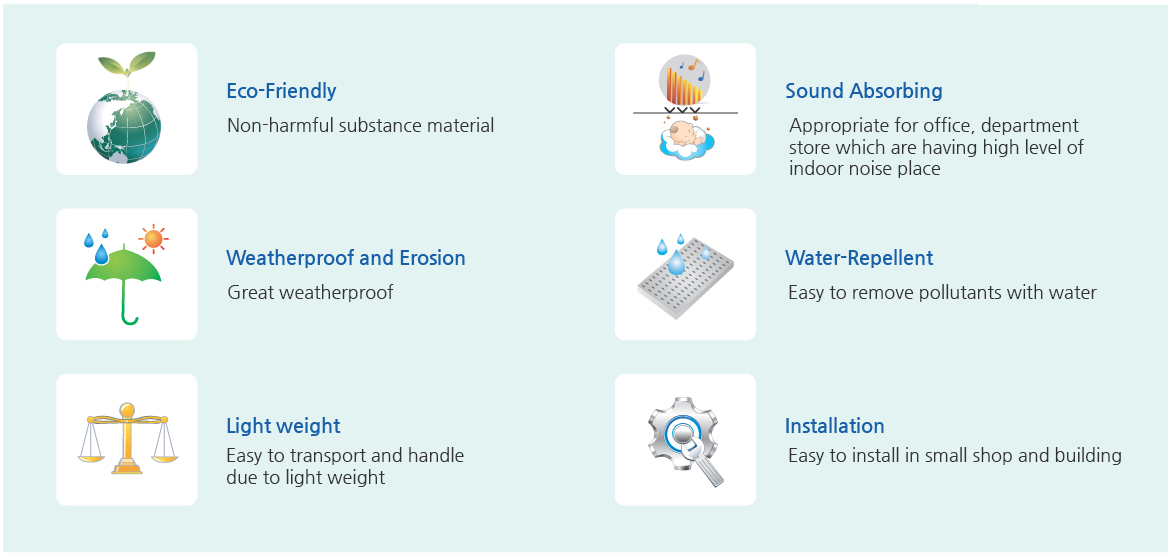

Products Feature
- Metal material which is Eco-Friendly and recyclable as scrap iron.
- High durability & heatproof, not corroded, possible to install in swimming pool.

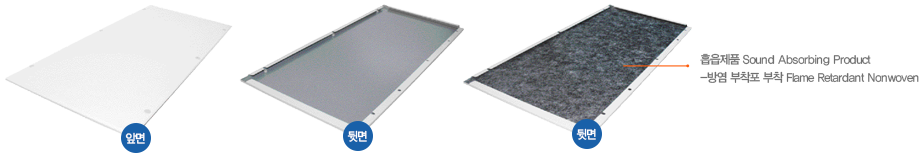

- Embossing on tile and attaching sound-absorbing materials.
- Common and quick install method with Clip-Bar.
- More inexpensive price and better performance than AL spandrel and SMC products.
- Not discoloring for long time caused by painted PMC, AL color and steel sheet.
- Higher heat, discoloring resistant than existing products made from resin material.
Clip-in System
Install instruction
- Insert the Hanger-bolt imstallation.
- Attach the Hanger-bolt.
- Installation Hanger.
- Installation Carrying channel.
- Installation Clip-Bar [Wire clip].
- Corner Molding.
- Combinantion DW Clip-bar.
A.B : 900-1200mm (MAX 1500mm)
D.C : (MAX 700mm) Conversion dimensions
DW-Metal Board (M-Bar Module System) Patent
DW-Metal Board is eco-friendly and semi-permanent material. This board is able to be substituted for asbestos board which have been already constructed and it could bring saving time with lower expense.
SMC 300x300
|
Product Group |
Size |
Surface |
Design |
||
|
Part Name |
Surface |
Product pitcture |
Surface picture |
||
|
PCM |
300 |
EP300 |
Flat |
 |
|
|
EPA300 |
Embossed (diamond pattern) |
 |
 |
||
|
EPR300 |
Circle |
 |
 |
||
|
EPC300 |
Perforate Sound Absorption |
 |
|||
|
Product Group |
Size |
Surface |
Design |
||
|
Part Name |
Surface |
Product pitcture |
Surface picture |
||
|
Color Steel Sheet |
300 |
EC300 |
Flat |
 |
|
|
ECA300 |
Embossed (diamond pattern) |
 |
|
||
|
ECR300 |
Circle |
 |
|
||
|
ECC300 |
Perforate Sound Absorption |
 |
|||
SMC 300x600
|
Product Group |
Size |
Surface |
Design |
||
|
Part Name |
Surface |
Product pitcture |
Surface picture |
||
|
PCM |
300 |
EP1 |
Flat |
 |
|
|
EP2 |
Embossed (diamond pattern) |
 |
 |
||
|
EP3A |
Hole (diamond pattern) Sound Absorption (flame proof) |
 |
 |
||
|
EP3B |
Hole (diamond pattern) Sound Absorption (flame proof) |
 |
 |
||
|
EP0A |
Circle pattern (exclusion flame proof) |
 |
 |
||
|
EP0B |
Circle pattern (flame proof) |
 |
 |
||
|
Product Group |
Size |
Surface |
Design |
||
|
Part Name |
Surface |
Product pitcture |
Surface picture |
||
|
Color Steel Sheet |
300 |
EP1 |
Flat (Plaster Panel Replacement) |
 |
|
|
EP2 |
Embossed (diamond pattern) |
 |
|
||
|
EP3A |
Hole (diamond pattern) Sound Absorption (flame proof) |
 |
|
||
|
EP3B |
Hole (diamond pattern) Sound Absorption (flame proof) |
 |
|
||
|
EP0A |
Circle pattern (exclusion flame proof) |
 |
|
||
|
EP0B |
Circle pattern (flame proof) |
 |
|
||
SMC 600x600
|
Product Group |
Size |
Surface |
Design |
||
|
Part Name |
Surface |
Product pitcture |
Surface picture |
||
|
PCM |
600 |
EP1 |
Flat |
 |
|
|
EP2 |
Embossed (diamond pattern) |
 |
 |
||
|
EP3A |
Hole (diamond pattern) Sound Absorption (flame proof) |
 |
 |
||
|
EP3B |
Circle |
 |
|||
|
EP0A |
Prevention separation (Locker for flat surface) |
 |
|||
|
EP0B |
Prevention separation (Locker for circle surface) |
 |
|||
|
Product Group |
Size |
Surface |
Design |
||
|
Part Name |
Surface |
Product pitcture |
Surface picture |
||
|
Color Steel Sheet |
600 |
EC600 |
Flat |
 |
|
|
ECA600 |
Embossed (diamond pattern) |
 |
|
||
|
ECC600 |
Hole (diamond pattern) Sound Absorption (flame proof) |
 |
|
||
|
ECW00 |
Prevention separation (Locker for flat surface) |
 |
|||
Color
Apply Images
Subsidiary materials
